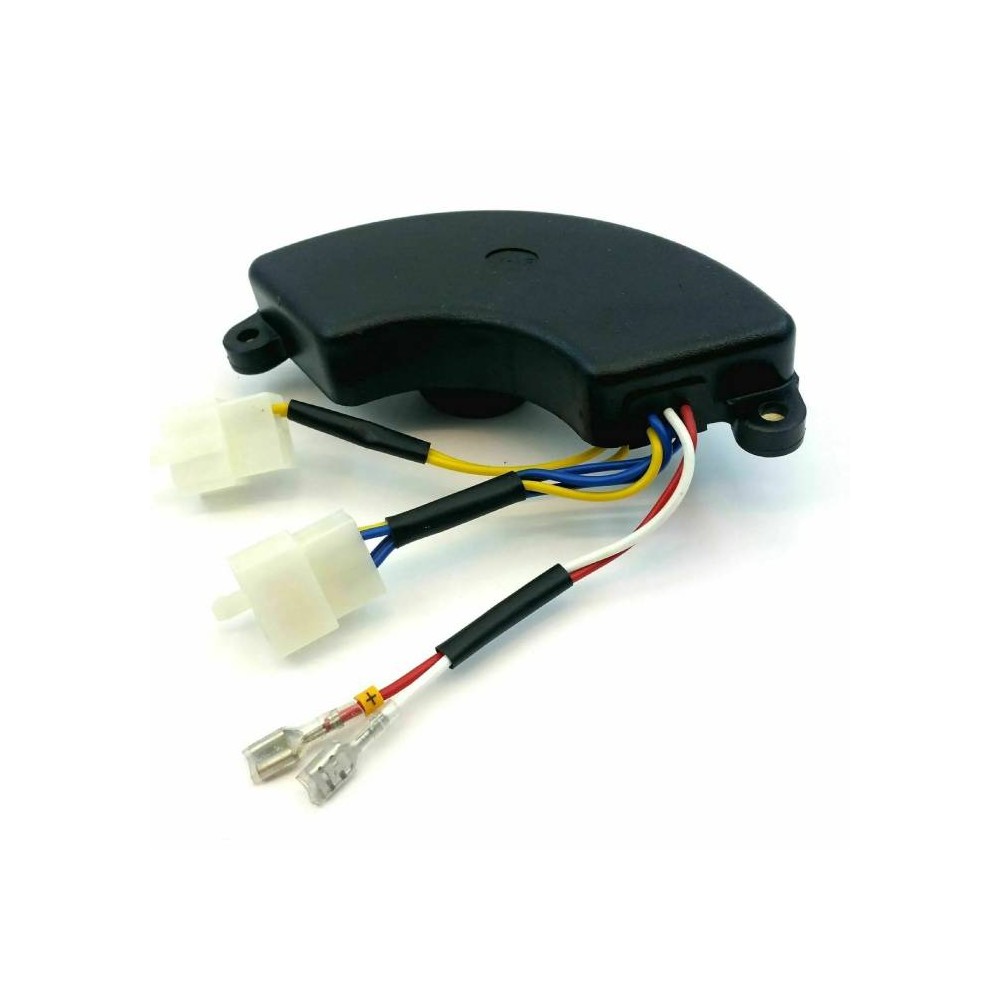

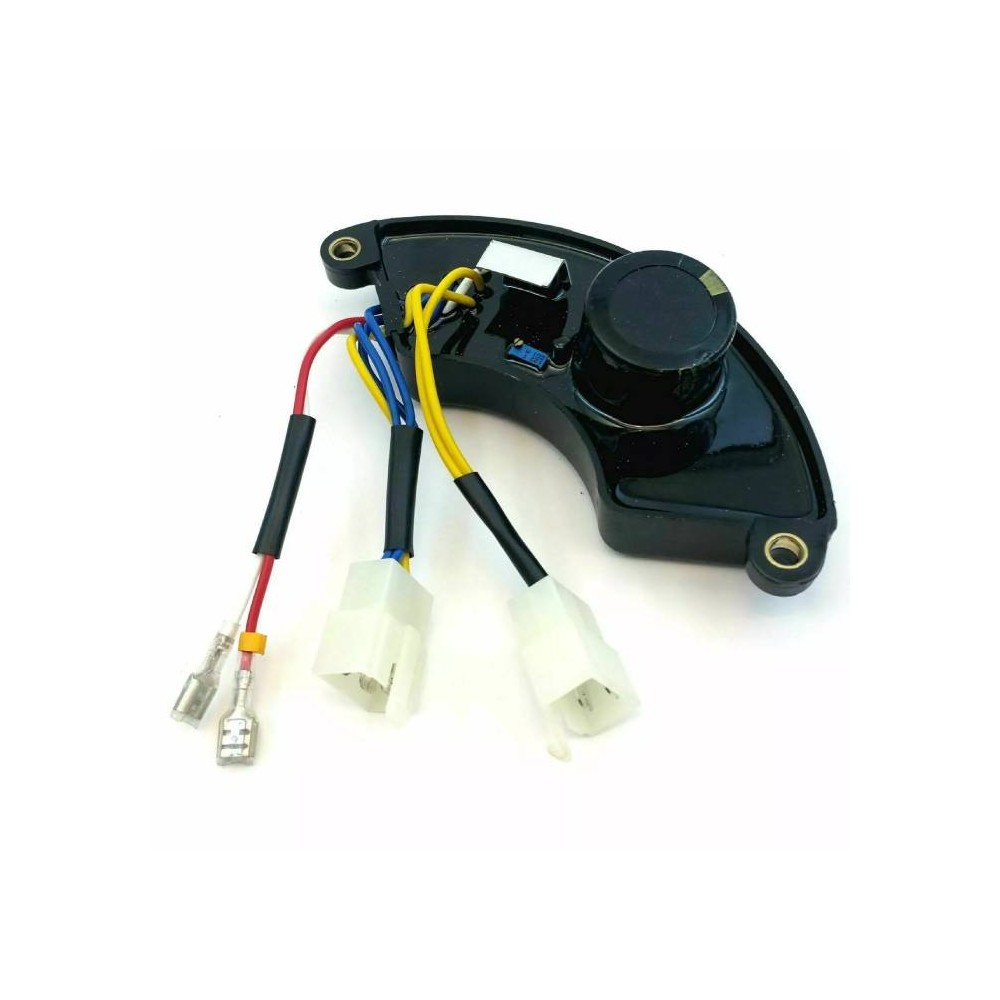

Voltage Regulator for Alternator Avr 5kw 8-Wire Generator Group

The AVR voltage regulator for 5 kW generator set alternator is an essential component to ensure voltage stability and proper operation of generator sets. This three-phase 8-wire model, designed for generators with gasoline or diesel engines up to 5 kW in power, ensures a constant power supply, protecting electrical equipment from voltage surges and improving overall generator efficiency.

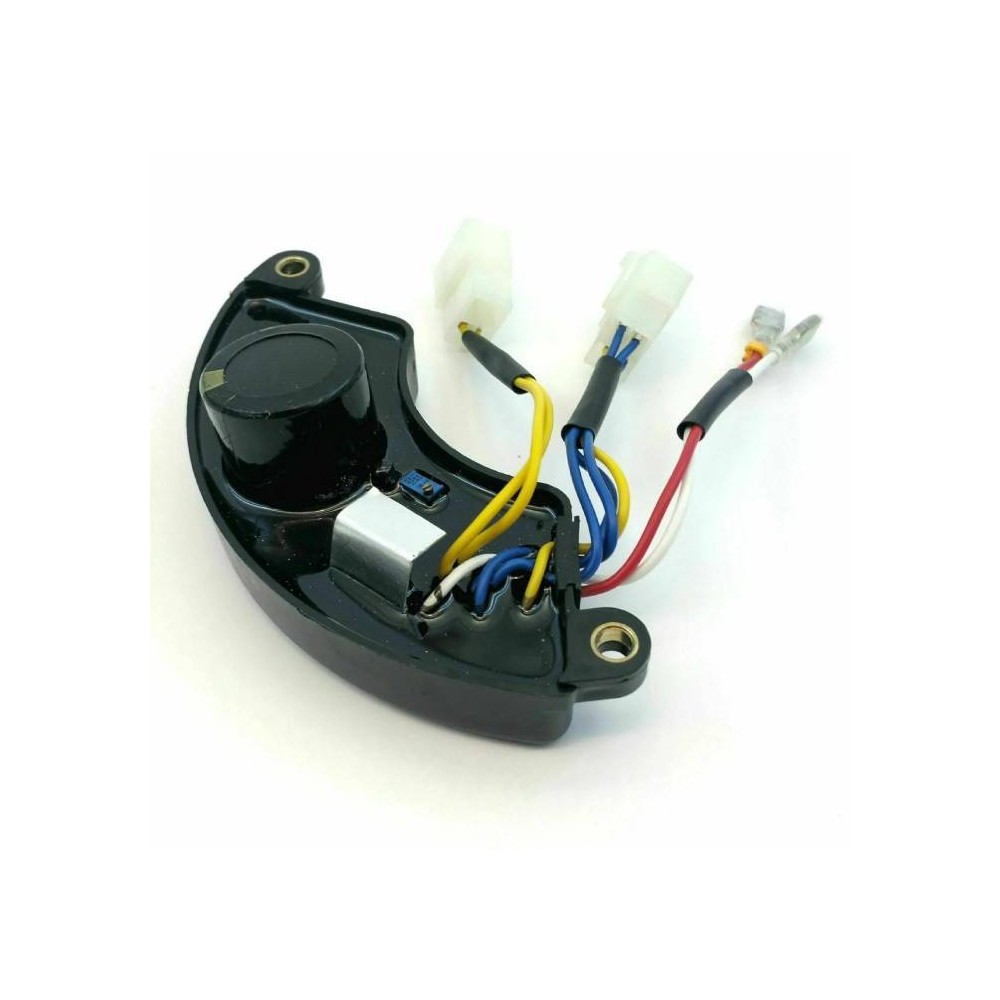

The rubberized plastic half-moon cover provides optimal protection of internal components, making the regulator resistant to shock and vibration. The device is equipped with a 250V - 470uF capacitor, which helps stabilize the output voltage and reduce unwanted fluctuations.

With a wheelbase of 140 mm, the regulator is compatible with most single-phase and three-phase gensets on the market. Its continuous output current of 2A DC, with a maximum peak of 3A DC for 60 seconds, makes it a reliable component even under prolonged use. The supply voltage of 220V AC, with 50/60 Hz frequency, ensures optimal current flow management.

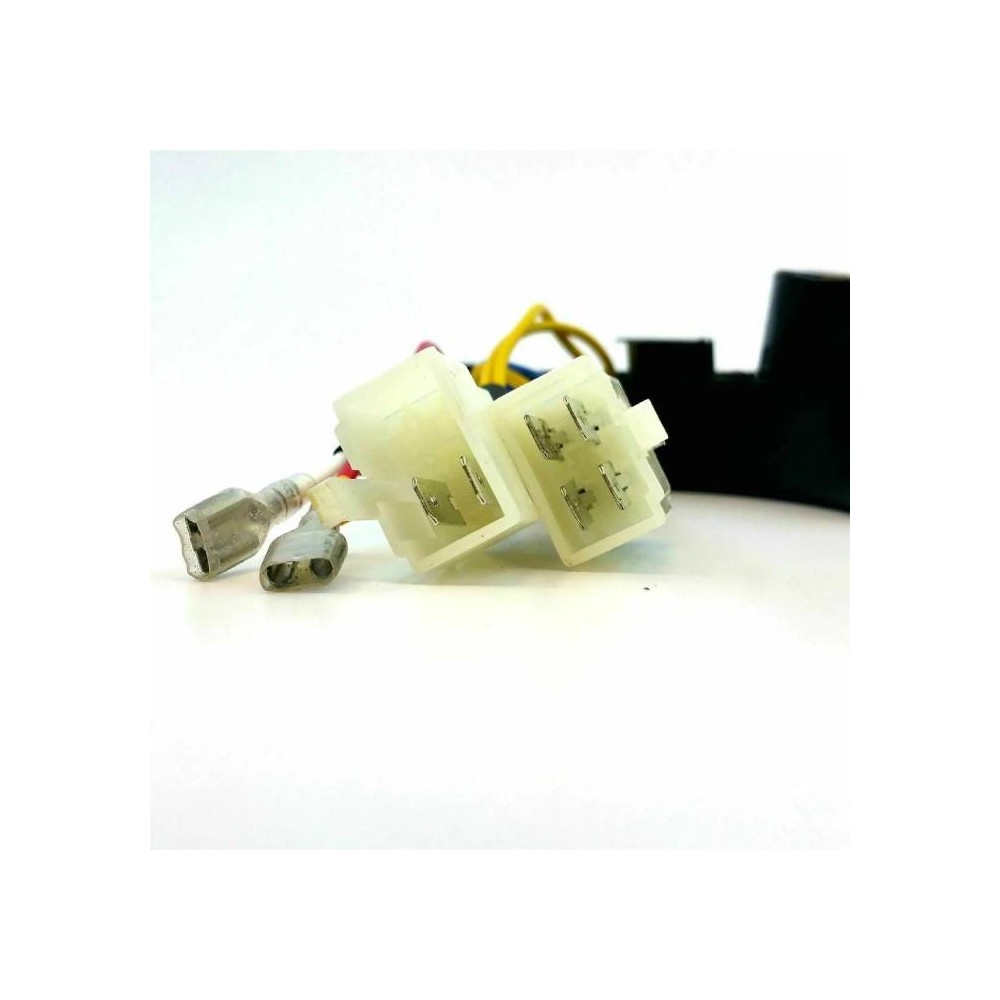

The5 kW 8-wire AVR is equipped with two separate connectors and two single wires, allowing for quick and intuitive installation. The output excitation voltage, ranging from 20V to 85V DC, allows precise control of the power supply, improving the stability of the generator and extending its operating life.

This voltage regulator is particularly suitable for those who use generator sets in industrial, agricultural and domestic applications, ensuring reliable performance and longer alternator life. With its advanced technology and high-quality materials, it is an ideal choice for those seeking an effective solution for voltage management in electric generators.

The AVR 5 kW 8-wire voltage regulator is an essential component for maintaining constant voltage in gensets, protecting connected equipment from sudden voltage variations. Due to its robustness, compatibility and ease of installation, it is the perfect choice for those looking for a reliable and durable product. Buy now at Oreb.com and ensure a stable and efficient power supply for your generator.
